External API Request is a powerful action block in the Tools section of ChatbotX’s Flow Builder. It enables your chatbot to establish two-way, real-time communication with your custom servers, CRMs (HubSpot, Salesforce), ERPs, e-commerce websites, or any external web services using the HTTP protocol. With External API Request, your chatbot goes beyond fixed answers. It can actively check account balances, verify inventory stock, retrieve shipping statuses, or send newly captured contact data directly to your business management platforms.

​
How to Create an External API Request Block in Flow Builder

To add an External API Request block to your conversation flow:
  1. Inside Flow Builder, click the + (or Create) button.
  2. Hover over Actions →\rightarrow select Tools →\rightarrow click External API Request.
  3. A new action block will appear on the canvas.

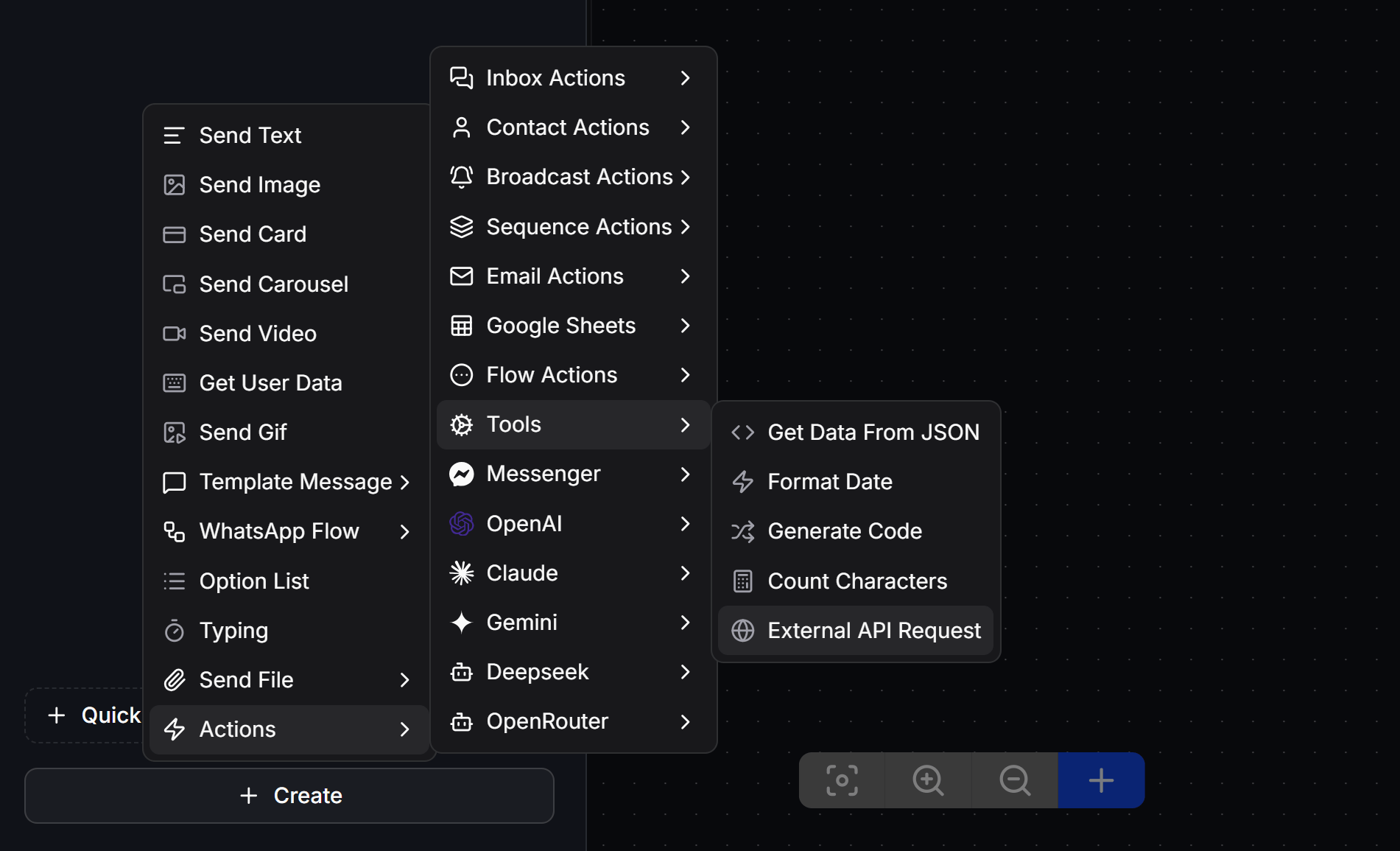

Flow Builder Actions Tools External Api Request

​
Detailed Configuration Guide for External API Request

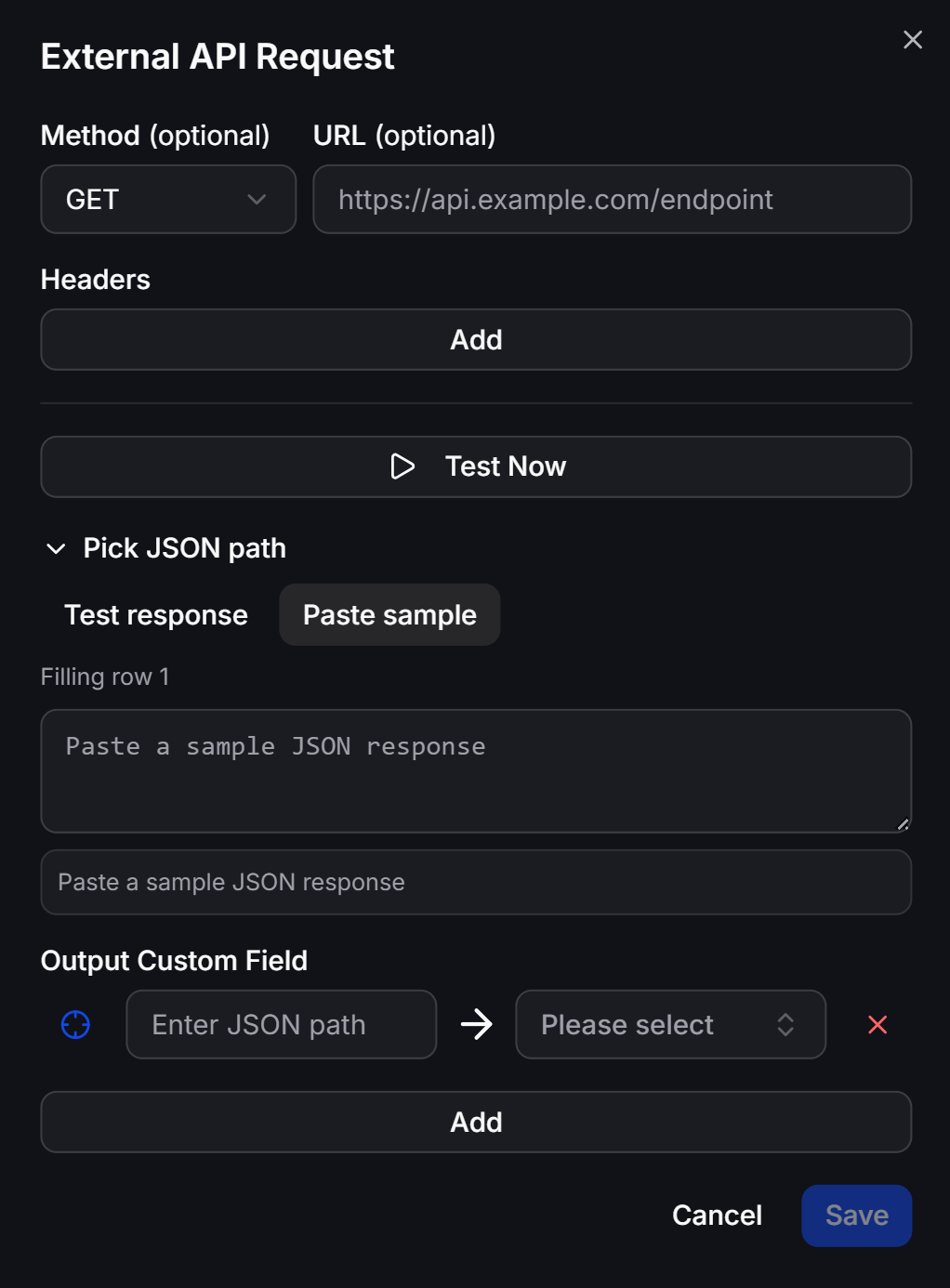

Click the External API Request block on the canvas to open the settings panel. The configuration window includes the following key sections:
External API Request Configuration

​
Request Method

Select the HTTP method that corresponds to the operation you want your server to perform:
  • GET: Used to look up and retrieve data from your server (e.g., checking coupon codes, verifying product inventory, fetching order status).
  • POST: Used to send new data to your server (e.g., pushing leads to CRM, creating new orders, registering events).
  • PUT / PATCH: Used to update existing data on your server (e.g., updating delivery address, modifying loyalty points).
  • DELETE: Used to request data deletion on your server.

​
Request URL and Endpoint

Enter the API URL of your server (e.g., https://api.yourdomain.com/v1/orders). Dynamic Variable Insertion: You can insert customer Custom Fields or System Fields directly into the URL using {{field_name}} syntax. For example: https://api.yourdomain.com/v1/orders/{{order_id}} (where order_id is automatically replaced with the actual order code of the customer currently in chat).

​
Request Headers

Define HTTP header values for security authentication or to declare content format:
  • Authorization: Bearer YOUR_API_KEY (API authentication token).
  • Content-Type: application/json (Declares that the outgoing request body format is JSON).
When executing an API request, ChatbotX automatically appends the active contact’s ID in the HTTP Header as X-USER-ID. Your server can use this header to identify the specific contact.

​
Request Body (for POST/PUT)

When using POST or PUT methods, select the data format (typically JSON) and input the payload structure to send to your server. You can freely insert ChatbotX variables into the JSON string:
{
  "full_name": "{{full_name}}",
  "phone": "{{phone}}",
  "email": "{{email}}",
  "selected_product": "{{product_code}}"
}

​
Response Mapping

Once your server processes the request and responds with a JSON payload, you have 2 ways to handle the output:

​
Option 1: Map Response to Custom Fields (Response Mapping)

Use JSON Path syntax (e.g., $.data.order_status or $.result.points) to extract specific values from the JSON response and save them directly into pre-created Custom Fields in ChatbotX. You can then use these Custom Field variables in subsequent message blocks to reply to the user.

​
Option 2: Render Dynamic Content

If you want your server to dynamically generate visual interactive interfaces (Cards, Carousels, Quick Replies) and execute system Actions, enable Dynamic Content mode. Your server must return a structured JSON payload conforming to {"messages": [...], "actions": [...]} for ChatbotX to render. For detailed instructions and payload specifications, refer to the Dynamic Content guide.

​
Real-World Use Cases

​
Example 1: Automated Order Status Lookup

Scenario: A customer inputs their order ID during a chat, and the Bot automatically calls your website API to fetch and display the status.
1

Collect Order ID

Use a Get User Data block to ask for the order ID and save it to a Custom Field named order_code.
2

Send External API Request

Configure the External API Request block with the GET method pointing to https://api.myshop.com/orders/{{order_code}}.
3

Map Response Data

Extract $.data.status from the JSON response and map it to the Custom Field order_status.
4

Send Status Update to Customer

Create a Text Message block following the API node: “Your order is currently: .”

​
Example 2: Save Customer Leads to CRM / Google Sheets

Scenario: When a customer provides their Name, Phone number, and Email for consultation, the Bot automatically forwards this data to your CRM system’s webhook.
  • Method: POST
  • URL: https://crm.yourcompany.com/api/v1/leads
  • Request Body:
    {
  "name": "{{full_name}}",
  "phone": "{{phone}}",
  "email": "{{email}}",
  "source": "ChatbotX Messenger"
}

​
Best Practices and System Warnings

Use the Test Request button inside the settings modal to send a live test to your server. The system will display the actual JSON response payload, making it easy to determine the exact JSON Path for mapping variables to Custom Fields.
Response Timeout: Your server must respond within a maximum of 10 seconds and return an HTTP Success status code (200 OK). If the server responds too slowly or throws an error (500 Internal Server Error), the API block will bypass automatically so the customer’s flow is not blocked.
Ensure the Custom Fields where you want to store the API response are pre-created under Settings →\rightarrow Custom Fields in ChatbotX.
