Click to Message Ads is a built-in advertising tool that allows you to create and manage Meta messaging ad campaigns directly within ChatbotX. When customers click your ads on Facebook or Instagram, they are instantly directed into an automated chat conversation on WhatsApp, Facebook Messenger, or Instagram Direct. This feature streamlines campaign creation, links your ads directly to automated chatbot workflows (Flows), and helps optimize conversion tracking without requiring complex setup inside Meta Ads Manager.

​
Accessing Click to Message Ads

To access the messaging ads management interface:
1

Navigate to Tools

From the left navigation sidebar in ChatbotX, select Tools.
2

Select Click to Message Ads

In the tools directory, click the Click to Message Ads card described as: Ads send people directly into a conversation on Messenger, Instagram, or WhatsApp.

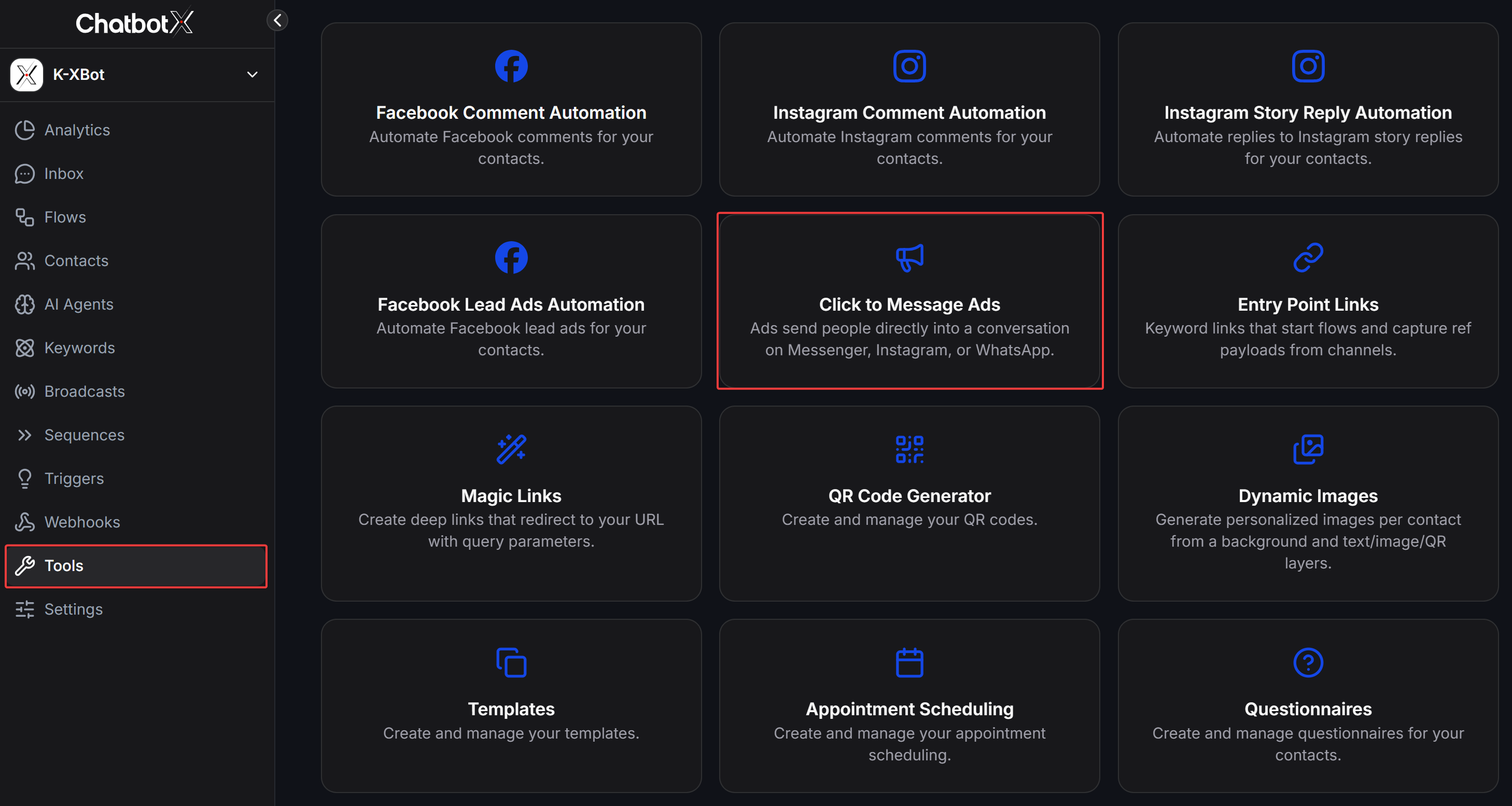

Tools Click To Message Ads Card
The breadcrumb trail at the top displays: Tools > Click to Message Ads.

​
Channel-Specific Management Interface

The Click to Message Ads workspace is organized into 3 tabs corresponding to supported Meta messaging channels:
The CTWA (Click-to-WhatsApp) tab allows you to launch campaigns on Facebook and Instagram that direct users straight to your WhatsApp Business phone number.

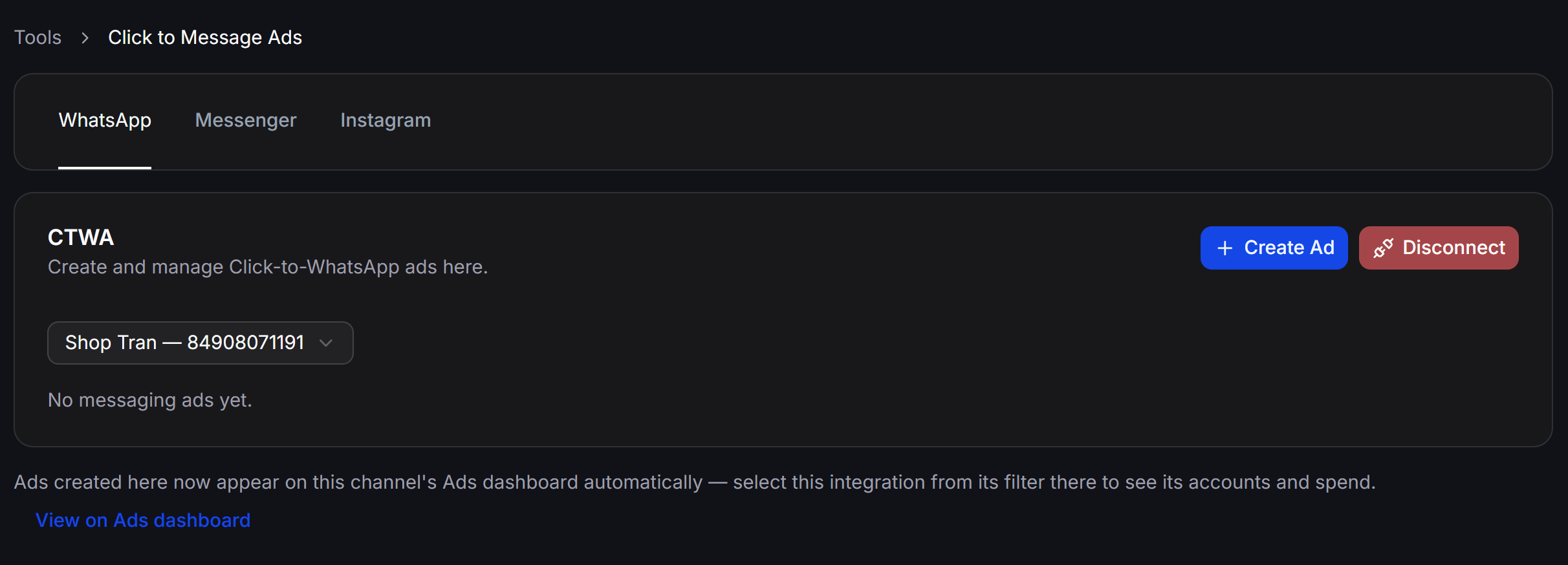

Click To Message Ads Ctwa
Key interface elements in the WhatsApp tab:
  • CTWA Header: Card header stating: Create and manage Click-to-WhatsApp ads here.
  • Account Selector Dropdown: Select the connected WhatsApp phone number or business account.
  • + Create Ad Button: Launches the 4-step wizard to set up a new Click-to-WhatsApp campaign.
  • Disconnect Button: Unlinks the advertising connection for this WhatsApp channel.
  • Ad List Area: Displays No messaging ads yet. when no active ads are created.
  • Ads Dashboard Sync Notice: Informs you that ads created here appear automatically on the channel’s Ads dashboard, with a direct View on Ads dashboard link to view accounts and spend.

​
Creating Click to Message Ads

Clicking the + Create Ad button on any channel tab opens a standardized 4-step campaign creation wizard:
1

Configure Campaign Details

Set the basic campaign properties:
  • Name: Enter a descriptive campaign title (for example: Promo Campaign Q3).
  • Objective: Automatically preset to Engagement (messaging).
  • Special ad category (optional): If advertising regulated verticals (Housing, Employment, Financial products and services, Credit, or Politics), select the corresponding category.
  • Ad category country (optional): Choose the authorized country where you have permission to run regulated category ads (for example: Vietnam, Singapore).

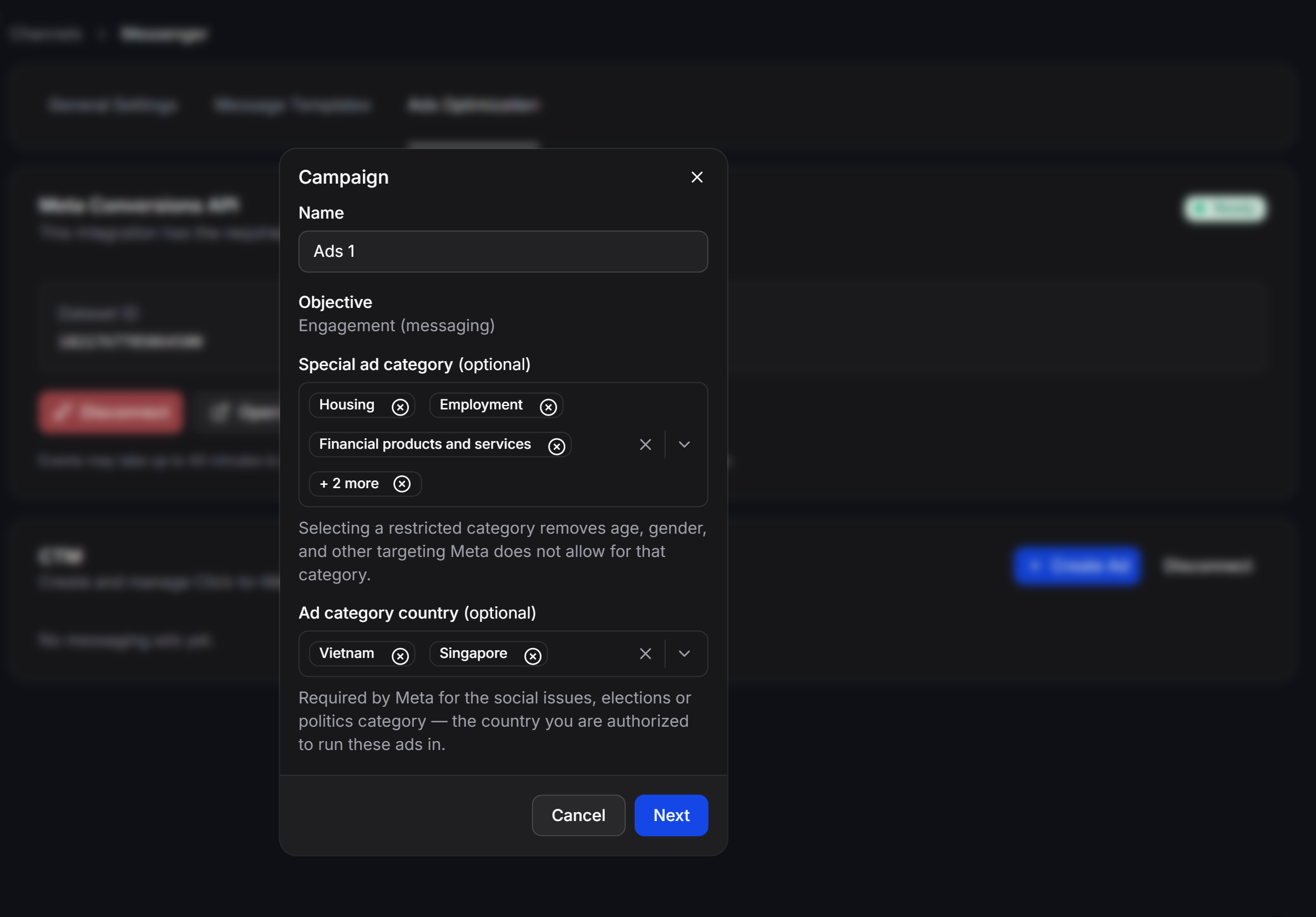

Messaging Ads Step1 Campaign
Per Meta policies, selecting a Special Ad Category automatically disables granular demographic targeting such as age, gender, and narrow geographic locations.
2

Configure Ad Set Parameters

Define budget, distribution schedule, and target audience:
  • Ad account: Select your connected Meta ad account (use the refresh icon to reload available accounts).
  • Currency: The currency code of the selected ad account (for example: VND, USD).
  • Daily budget: Enter your daily spend budget in the smallest currency unit.
  • Countries: Select target countries for ad delivery.
  • Minimum age & Maximum age (optional): Set age constraints for ad visibility.
  • Gender (optional): Select target gender (All, Men, or Women).
  • Start time & End time: Define the exact campaign start and end dates.

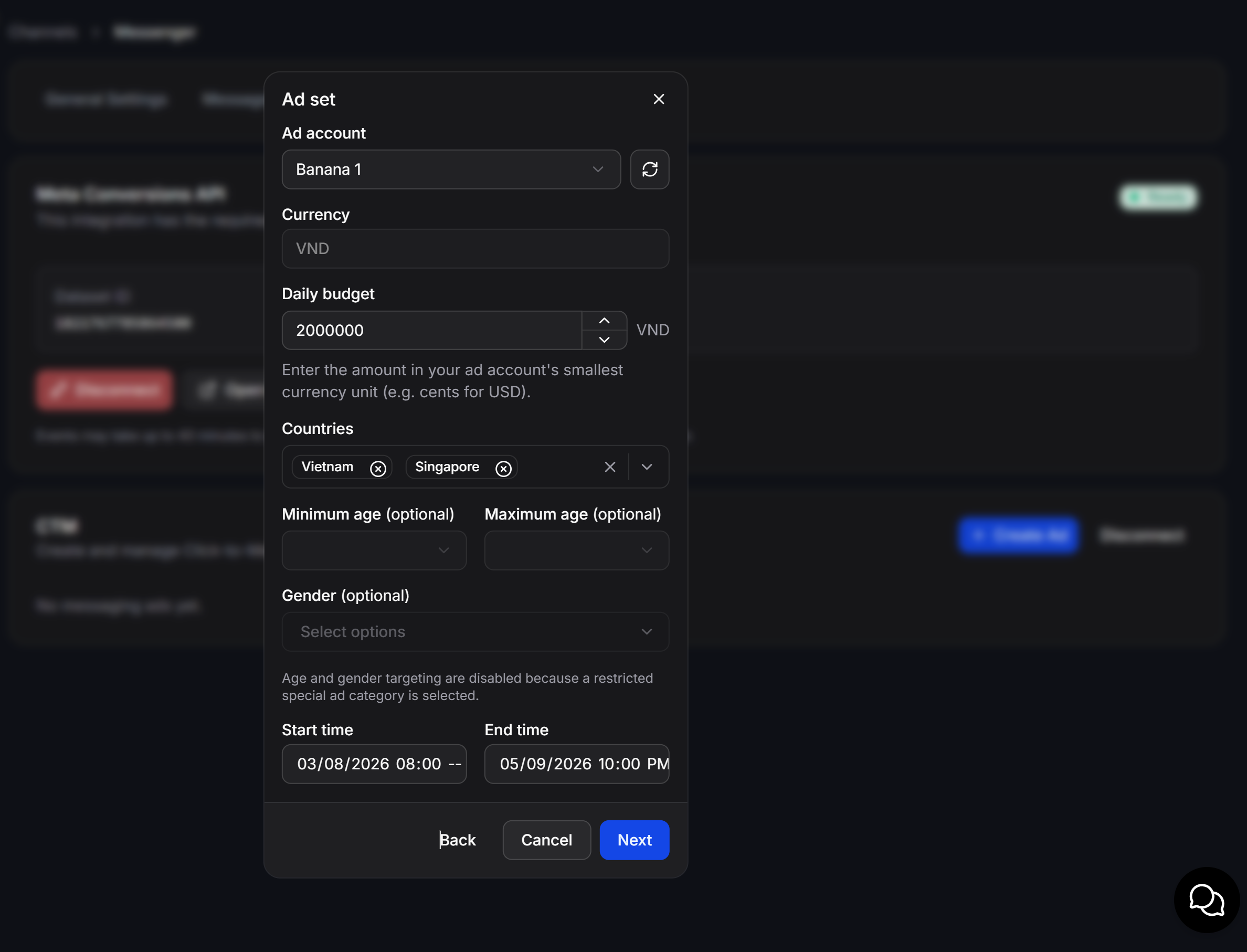

Messaging Ads Step2 Adset
3

Design Ad Creative & Welcome Message

Upload media assets and customize conversation opening messages:
  • Creative media: Click Upload image or Upload video to upload your ad media.
  • URL (optional): Add a supplementary destination web address.
  • Primary text (optional): The main ad copy displayed in the post caption.
  • Headline & Description (optional): The bold headline and subtext next to the call-to-action button.
  • Welcome message: Choose how the chat opens when users click the ad:
    • Use Meta's default message: Uses Meta’s standard greeting template.
    • Single message: Defines a custom static opening greeting.
    • Test up to 5 message variants: Performs an A/B test across up to 5 welcome message variants to optimize reply rates.
  • Call to action: Automatically assigned based on the channel (e.g., MESSAGE_PAGE for Messenger, WHATSAPP_MESSAGE for WhatsApp).

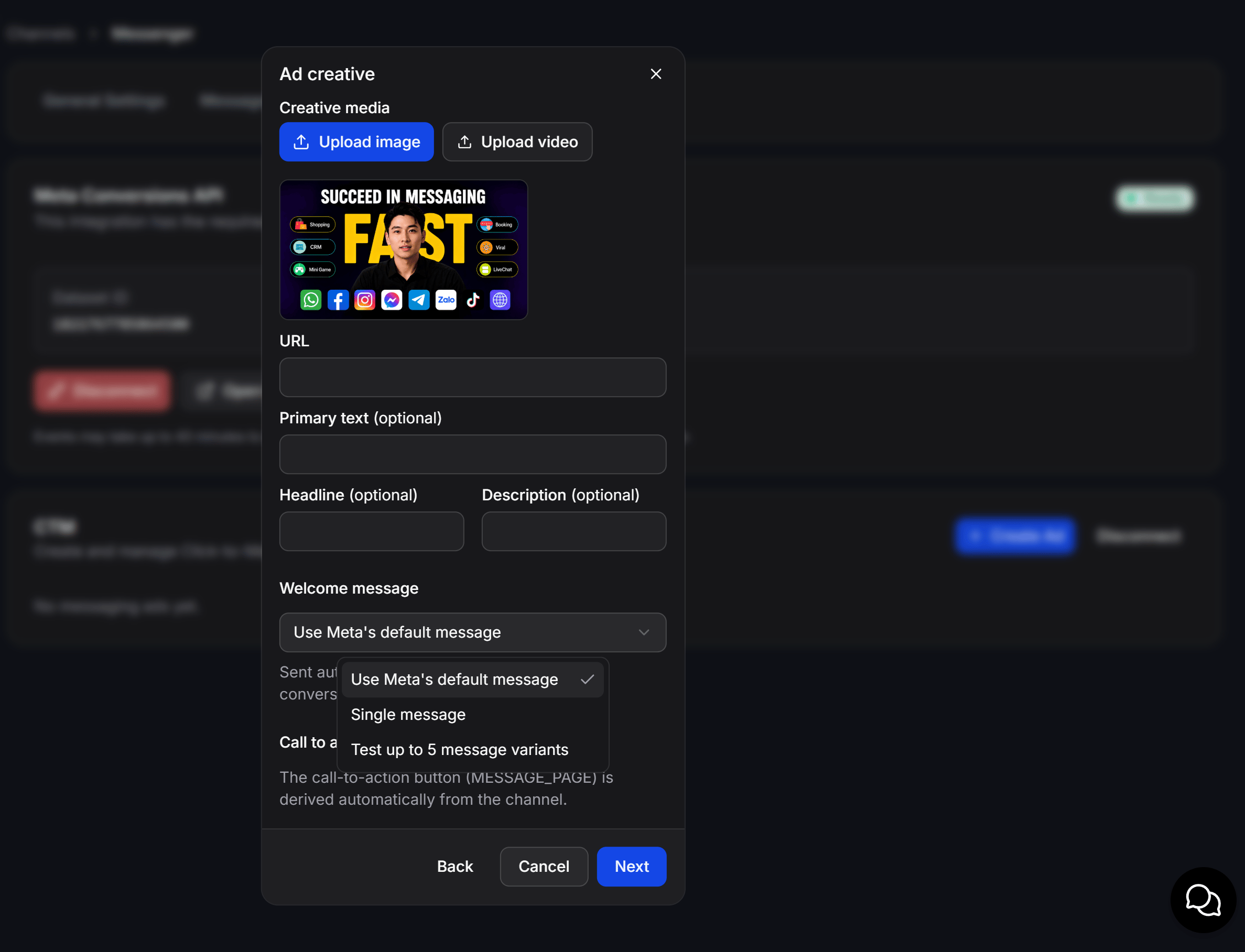

Messaging Ads Step3 Adcreative
4

Review & Create as Paused Draft

Verify all configured parameters on the Review modal:
  • Summary parameters: Name, Ad account, Destination, Daily budget, Countries, Special ad category, Creative media, and Welcome message.
  • Safety-by-Design Mechanism: Clicking Create as paused draft publishes the campaign to Meta Ads Manager in a Paused (PAUSED) status. This ensures that no budget is spent and the ad does not go live until you actively review and activate it inside Meta Ads Manager.

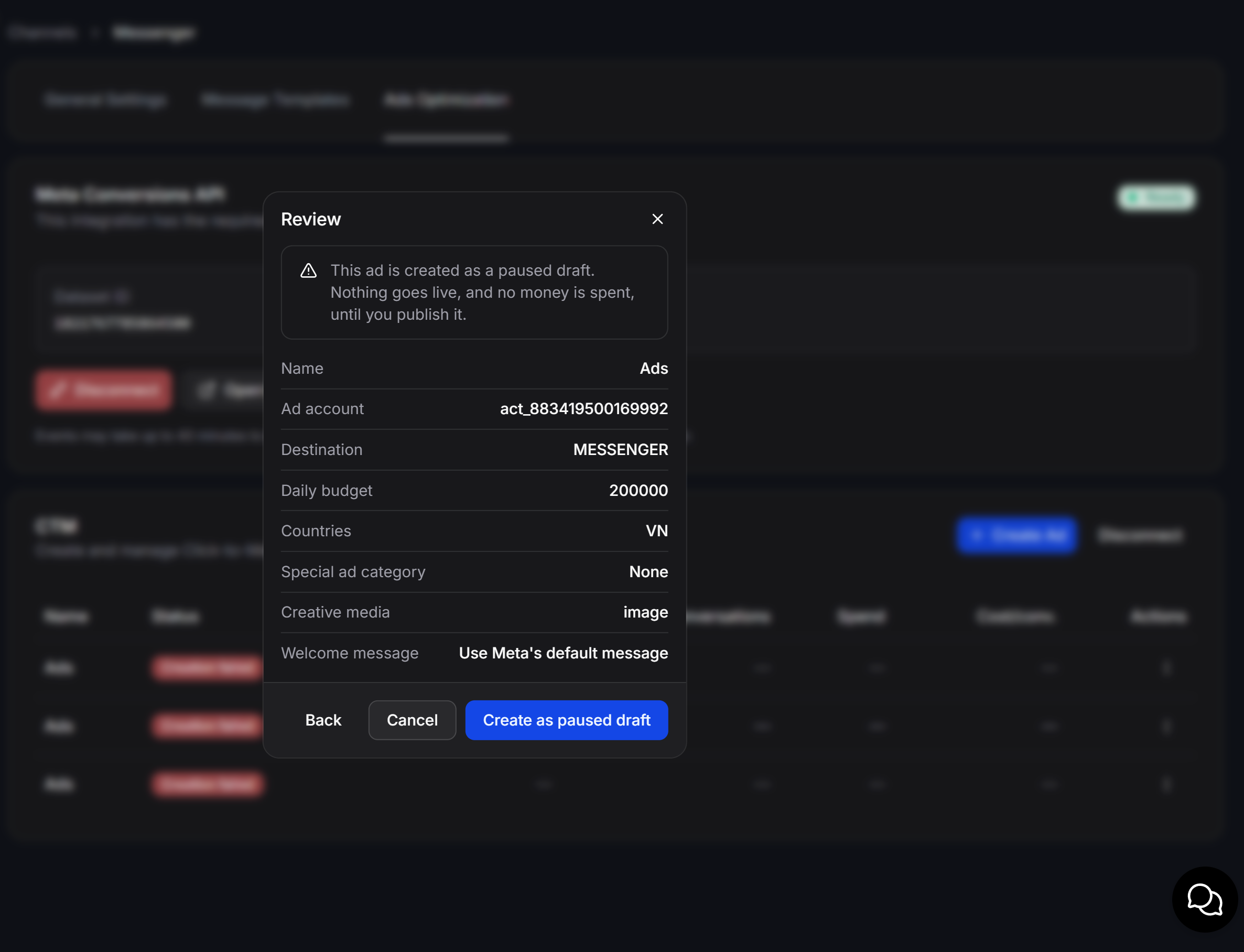

Messaging Ads Step4 Review Paused Draft

​
Connecting with Flows and Conversion Optimization

To maximize return on ad spend (ROAS), connect your messaging ads with ChatbotX automation features:

​
1. Welcome Leads with Automated Flows

When users click your ad and message your channel:
  • Greet them instantly with relevant information tailored to the ad creative.
  • Collect lead details (Name, Phone Number, Email) and store them automatically in Contacts.
  • Qualify potential customers using Tags or Custom Fields.

​
2. Track Conversions with Meta CAPI Event

Insert the Send Meta CAPI Event action inside your Flow immediately after a lead submits their information or makes a purchase:
  • Server-side conversion events (Lead Submitted, Purchase, etc.) stream directly to Meta Events Manager.
  • Meta’s machine learning algorithms optimize ad delivery to audience segments most likely to convert.
  • For complete Dataset configuration steps, refer to Meta CAPI Event.

​
Important Notes

Ads created from this tool automatically sync to each channel’s Ads dashboard. Click View on Ads dashboard anytime to inspect connected accounts, delivery metrics, and total spend.
Ensure your Meta Business Manager, Facebook Page, or WhatsApp Business account has full advertising permissions before creating ads to prevent permission errors during submission.
