Facebook Lead Ads with Instant Forms is one of Meta’s most effective tools for capturing qualified leads. Potential customers can request consultations, download whitepapers, or get quotes directly within the Facebook and Instagram feed without leaving the platform. However, relying solely on native Instant Forms requires manually downloading lead files from Meta Ads Manager, resulting in slow follow-up times and lower conversion rates. Facebook Lead Ads Automation on ChatbotX solves this challenge with a seamless two-way automated integration:
  • Automatic Messenger Follow-up: As soon as a user submits an instant form, Meta automatically initiates a Messenger conversation and launches an automated welcome flow powered by the ChatConnectX Partner App.
  • Real-Time Data Capture: Contact details submitted in the form automatically sync directly into Custom Fields in ChatbotX to trigger instant notifications, append rows in Google Sheets, or sync to CRM systems.

Key Benefits of Automating Facebook Lead Ads with ChatbotX

  • Instant Lead Response: Engage potential customers the moment their buying intent is highest, eliminating response lag.
  • 100% Automated Data Pipeline: Say goodbye to manual CSV downloads and spreadsheet updates.
  • Official Meta Partner Integration: Select your message flows directly inside Meta Ads Manager using the verified ChatConnectX Partner App integration.
  • Multi-Channel Data Distribution: Form answers map directly to subscriber profiles, enabling automated syncs to Google Sheets and external CRMs.

Prerequisites

Before setting up your campaign, ensure you have:
  • A Facebook Page connected to your ChatbotX account.
  • Created the necessary Custom Fields in ChatbotX corresponding to your form questions (e.g., Full Name, Phone, Email, Address…).

Create and Publish Your Welcome Flow in ChatbotX

To make your message flow visible in Meta Ads Manager under the partner app directory, the flow must be created and published in ChatbotX first:
1

Design your welcome flow

From the left menu, navigate to Automation > Flows. Create a flow to follow up after a lead submits your form (including a greeting, summary of submitted answers, and quick action buttons).
2

Publish the flow

Click the Publish button in the upper right corner of the canvas to activate the flow.
Publish Lead Ads Message Flow
This step is mandatory. If the flow remains in Draft status, Meta Ads Manager will not be able to retrieve it when configuring the ChatConnectX Partner App.

Setting Up a Lead Ads Campaign in Meta Ads Manager

Follow these steps to configure a Lead Ads campaign with automated Messenger delivery in Meta Ads Manager:

Create a Campaign with the Leads Objective

1

Create a new campaign

Open Meta Ads Manager and click the Create button.
2

Select the Leads objective

Under Choose a buying type, keep the default as Auction. Under Choose a campaign objective, select Leads and click Continue.
Select Leads Campaign Objective

Configure the Ad Set with Instant Forms and Messenger

Navigate to the Ad Set level to define your conversion destination:
1

Select the hybrid conversion destination

Scroll to the Conversion location section. Under Multiple, select Instant forms and Messenger.
Select Instant Forms and Messenger Conversion Location
2

Select your Facebook Page

Choose the Facebook Page connected to your ChatbotX account.

Create an Instant Form at the Ad Level

Navigate to the Ad level:
1

Create an instant form

Upload your creative media and enter your ad copy. Under the Instant forms and Messenger section, click + Create to build a new form (or select an existing compatible form).
Create Instant Form at Ad Level
2

Define your form questions

Configure the fields you want to collect, such as Full Name, Phone Number, Email, and Delivery Address.

Enable Messenger Conversations and Select the ChatConnectX Flow

At the final step of the form builder (Message for leads):
1

Enable Messenger conversations

Enter your thank-you headline and description. Scroll to the Connect with leads in Messenger section and check Start conversations on Messenger. Then click the Select flow button.
Enable Messenger Conversations in Form Completion Step
2

Select the ChatConnectX Partner App and Flow

In the Partner app modal:
  • In the Partner app dropdown: Select ChatConnectX.
  • In the Message flow dropdown: Select the flow you published in ChatbotX during the preparation step.
Select ChatConnectX Partner App and Message Flow
If your flow does not appear in the dropdown list, return to ChatbotX and verify that you clicked the Publish button for that flow.
3

Apply and finish the form

Check the preview pane on the right. Click Apply to attach the flow, then click Create form to complete the setup on Meta.

Configuring Lead Ad Automation in ChatbotX

After creating your form on Meta, open ChatbotX to configure the automatic mapping of submitted answers to contact custom fields.
1

Open Facebook Lead Ads Automation

From the left navigation menu, select Tools, then click Facebook Lead Ads Automation.

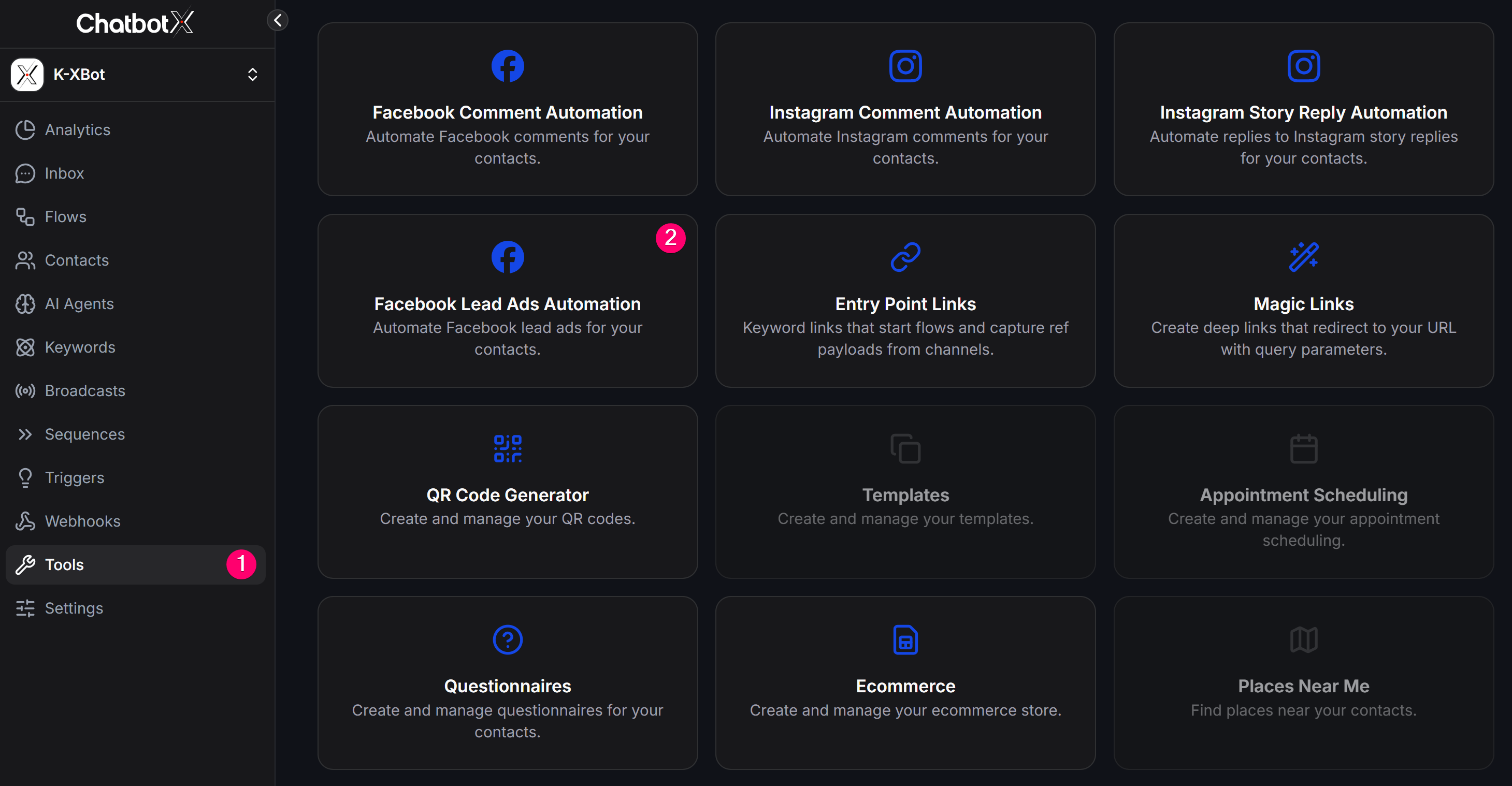

Open Facebook Lead Ads Automation from Tools
2

Create a new automation

In the automation management table, click the + Create New button in the upper right corner.

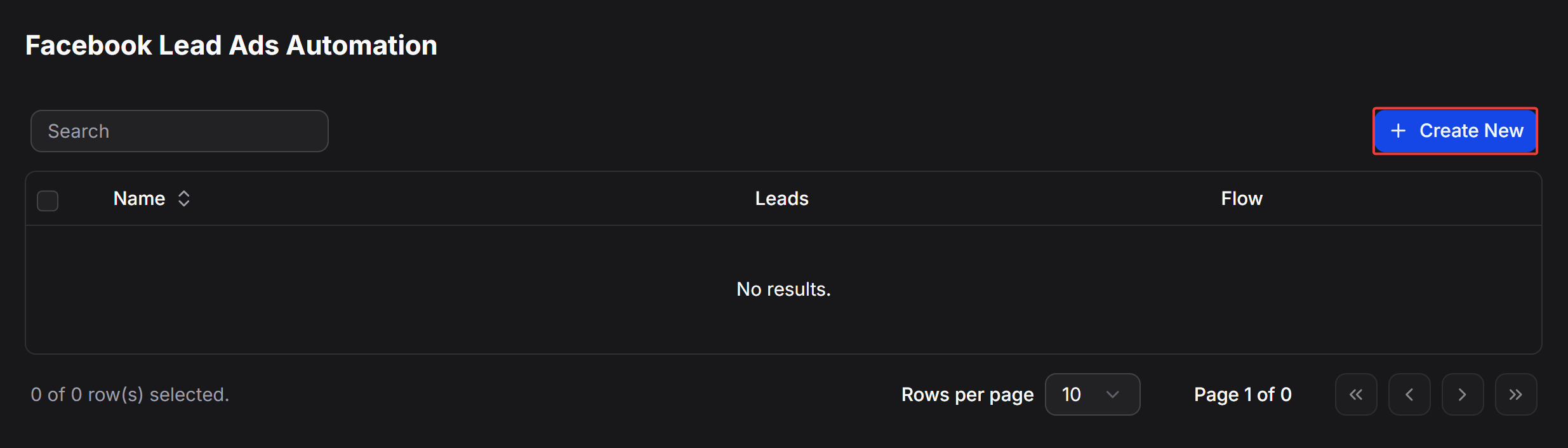

Create New Facebook Lead Ads Automation
3

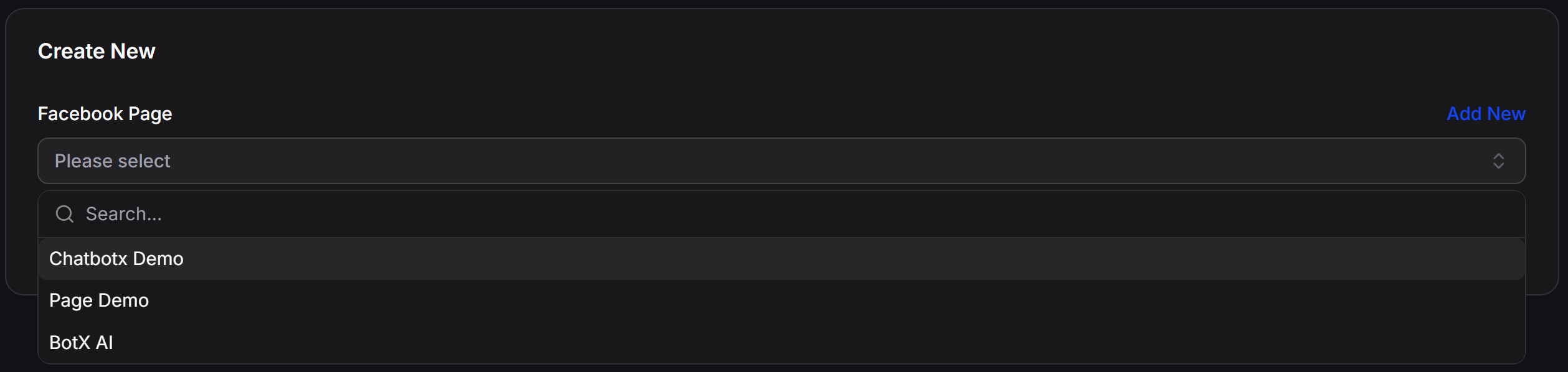

Select or connect your Facebook Page

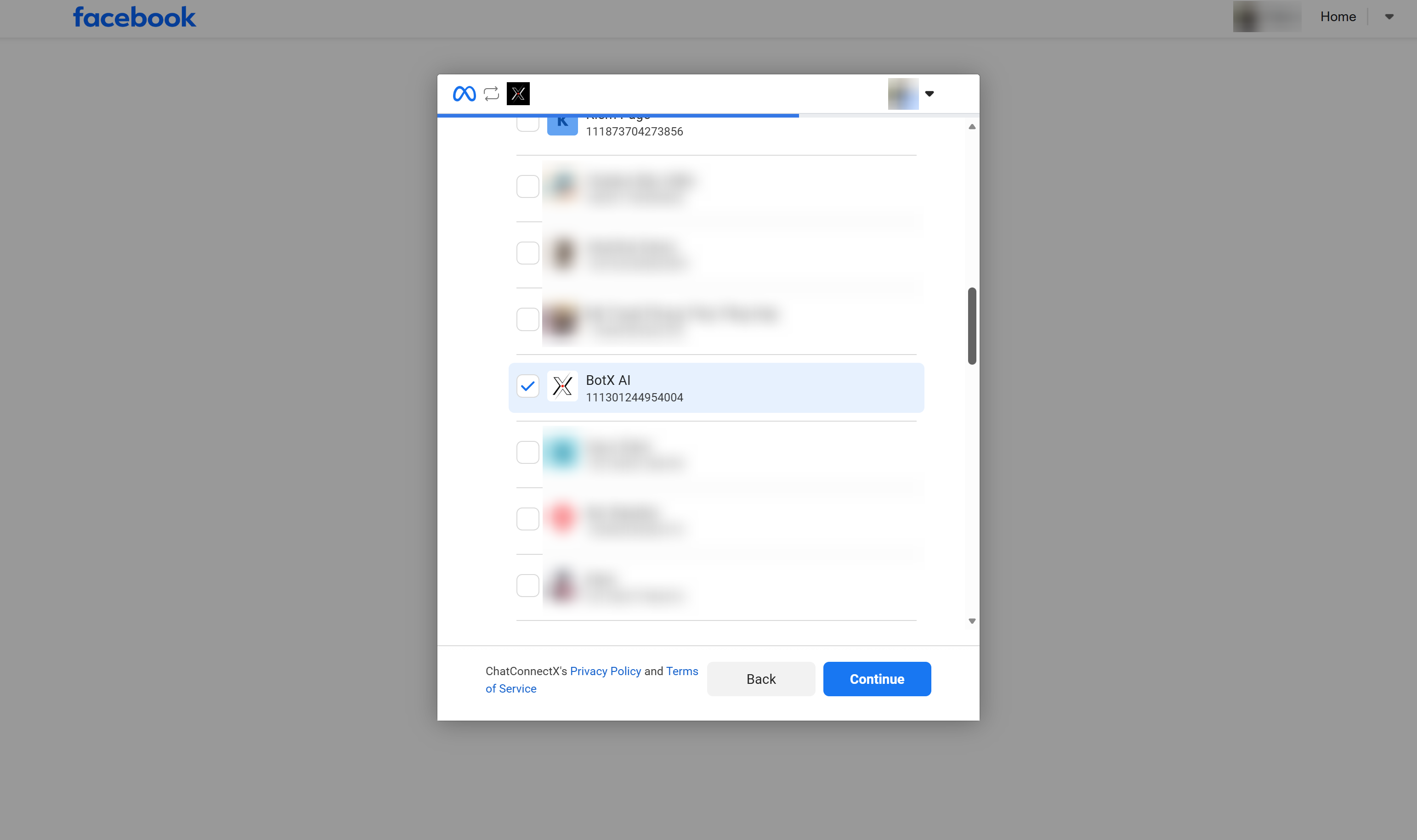

In the Facebook Page dropdown, select the Page running your ad campaign.If your Page does not appear in the dropdown list, click the Add New link beside the field to open Meta’s authorization dialog, select your Page, and confirm permissions.
4

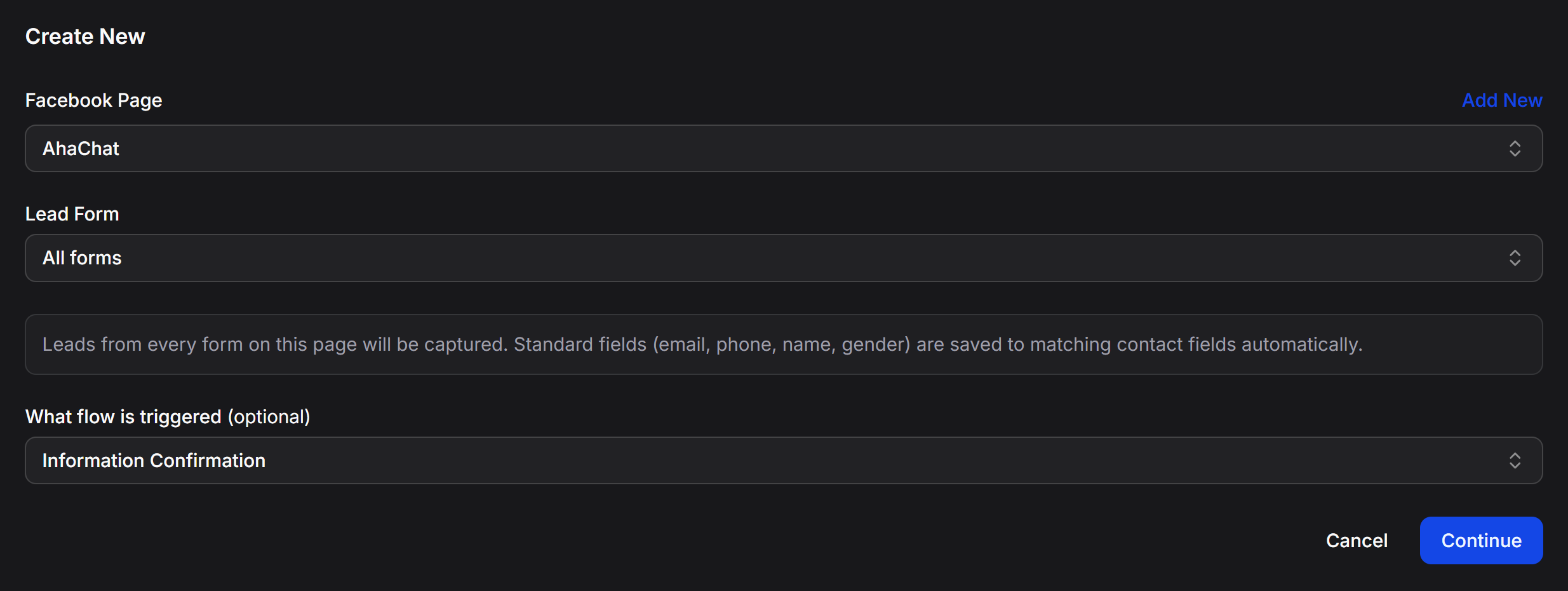

Select your Lead Form

Under Lead Form, open the dropdown list and select the form you just created in Meta Ads Manager.
Select Lead Form from Dropdown List
5

Map form fields to Custom Fields

Under Lead Data, the system automatically detects all questions from the selected form. Map each question to the corresponding Custom Field in ChatbotX (or click Add to create a new field).Once all fields are mapped, click Continue to activate the automation.

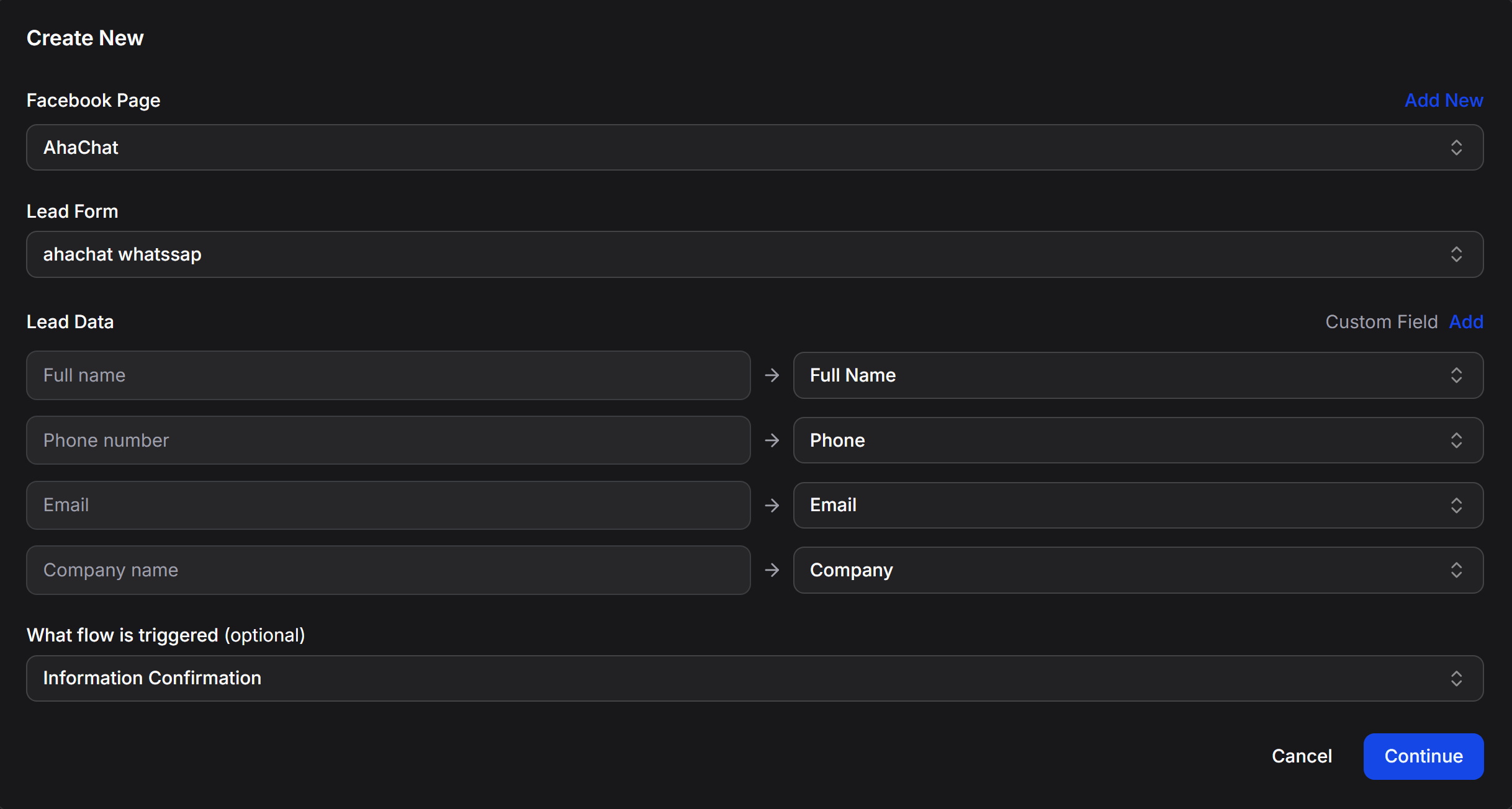

Assign Facebook Lead Form Fields to Custom Fields
You do not need to select a welcome flow inside this tool because your message flow was already linked directly through the ChatConnectX Partner App inside Meta Ads Manager.

Automatic Lead Handling and Workflows

Once a user submits your ad form, the system executes an automated pipeline:
  1. Instant Contact Record: Information such as Full Name, Phone Number, and Email is immediately logged to the subscriber’s profile in ChatbotX.
  2. Automated Messenger Greeting: The user receives a personalized confirmation message in Messenger with buttons to track status or chat with support.
  3. Google Sheets Sync: Include a Google Sheets action inside your ChatbotX flow to automatically append a new row with lead details to your sales team’s spreadsheet.
  4. Internal Notifications: Trigger automated Livechat alerts or email notifications so sales representatives can follow up without delay.

Best Practices for Maximizing Lead Conversions

Maximize your return on ad spend with these proven optimization tips:

Keep Instant Forms Concise

Ask only for essential qualifying information (such as Name and Phone Number). Each additional question can decrease form completion rates by 10% to 20%.

Use Messenger as an Instant Receipt

Your automated Messenger message functions as an immediate confirmation. Summarize the submitted details and state when your sales team will reach out. This dramatically improves answer rates when reps call.

Contact Leads Within 15 Minutes

Social media leads cool down quickly. Following up within the first 15 minutes can increase closing rates significantly compared to following up several hours later.

Frequently Asked Questions

Meta Lead Ads data syncs to ChatbotX in near real time (typically within seconds after form submission). Contact custom fields update immediately.
The most common reason is that the flow in ChatbotX has not been published yet (it is still in Draft status). Simply open the flow in ChatbotX, click the Publish button, and refresh your selection in Meta Ads Manager.
Click the Add New link directly next to the Facebook Page dropdown. A Meta authorization popup will open where you can select and grant access to the Page.
Yes. The user’s form submission data is immediately captured in ChatbotX via Facebook Lead Ads Automation. However, under Meta platform policies, the standard 24-hour Messenger conversation window only opens once the user actively taps a button or sends a reply message in Messenger.
Yes. You can configure a dedicated Facebook Lead Ads Automation for each Instant Form to route and map data according to specific product lines or campaigns.
